1:400 Boeing 737 MAX 8 Diecast Accuracy Review: NG Models vs JC Wings vs Geminijets vs Phoenix

Collector Analysis · Xwinglet · April 2026

This review puts four 1:400 scale Boeing 737 MAX 8 diecast molds through a nine-criterion side-by-side accuracy test: overall proportions, AT Winglet geometry (ruler-measured against b737.org.uk reference data), LEAP-1B fan blade geometry, chevron nozzle sharpness, main and nose landing gear, wing panel lines, fuselage belly antennas, and tail section detail. Every verdict is based on physical hands-on inspection, ruler measurements, and direct photograph comparison. No finding is inferred from brand reputation. The gap between first and last place is substantial enough to be visible on a display shelf without close-up photography.

Four releases tested: NG88015 (NG Models · Southwest Airlines N8888Q · 1:400), LH4189 (JC Wings · Smartwings OK-SWB · 1:400), GJASA2273 (Geminijets · Alaska Airlines N801AK · 1:400), and PH11938 (Phoenix · Ryanair EI-IJT · 1:400). Visibility tier system: HIGH — visible without picking up the model; MEDIUM — visible when rotating; LOW — requires deliberate close inspection.

Overall Rankings — All Nine Criteria at a Glance

Key Findings Not Widely Documented in the Collector Community

• ►Geminijets has zero belly blade antennas on its 1:400 737 MAX 8 mold. The real Boeing 737 MAX 8 carries three blade antennas on the fuselage underside. Geminijets (GJASA2273) omits all three entirely — the belly is completely blank. NG Models (NG88015) and Phoenix (PH11938) both render the correct three. JC Wings (LH4189) has two, missing one near the wing station.
• ►All four brands render LEAP-1B chevron nozzles, but only three render them sharply. JC Wings (LH4189), NG Models (NG88015), and Geminijets (GJASA2273) all produce sharp, well-defined sawtooth chevron edges. Phoenix (PH11938) renders noticeably softer, less defined edges. Chevron presence is not a differentiator — edge quality is.
• ►The AT Winglet lower fin is universally oversized by ~75% across all four 1:400 brands. The true 1:400 lower winglet should measure 0.342 cm; all four brands measure approximately 0.60 cm. This is a structural tooling constraint at this scale, not a design choice. Geminijets achieves the closest upper/lower ratio (1.50:1) by running a longer upper fin (0.90 cm). True ratio per b737.org.uk: 1.84:1.
• ►NG Models (NG88015) is the only 1:400 brand to render ventral strakes on the 737 MAX 8. Ventral strakes are the small fin-like structures on the aft fuselage underside visible on the real aircraft. JC Wings, Geminijets, and Phoenix all omit them. A LOW-visibility detail — requires close inspection — but a distinguishing structural accuracy marker.
• ►NG Models' nose gear is visually distinct from all other brands at eye level. NG Models renders a larger structural block at the lower axle area — the result looks oversized and the angle appears incorrect relative to the real aircraft's axle fork. The torque links are also noticeably larger. This sits directly below the cockpit windows and is more visible than its MEDIUM tier rating implies.
• ►Phoenix (PH11938) is the only brand with a genuine physical APU exhaust opening. The Boeing 737 MAX 8 APU exhaust is located at the tail cone. Phoenix drills an actual opening; JC Wings, NG Models, and Geminijets all print a dot. This is Phoenix's only clear accuracy advantage in a head-to-head comparison.
• ►JC Wings and NG Models show correct nose-down parked stance; Geminijets and Phoenix do not. The real 737 MAX 8 sits nose-down when parked due to landing gear geometry. LH4189 and NG88015 reproduce this correctly. GJASA2273 sits nose-up; PH11938 sits nose-up with the most pronounced incorrect pitch.
• ►Ryanair's EI-IJT (PH11938) is a 737 MAX 8-200, not a standard 737 MAX 8. The 737 MAX 8-200 is a Ryanair-specific higher-density variant featuring two additional overwing exit doors and a maximum of 197 passengers — eight more than the standard -8. It is the only 1:400 MAX 8-200 among the four reviewed releases. The -200 designation applies exclusively to Ryanair's fleet.

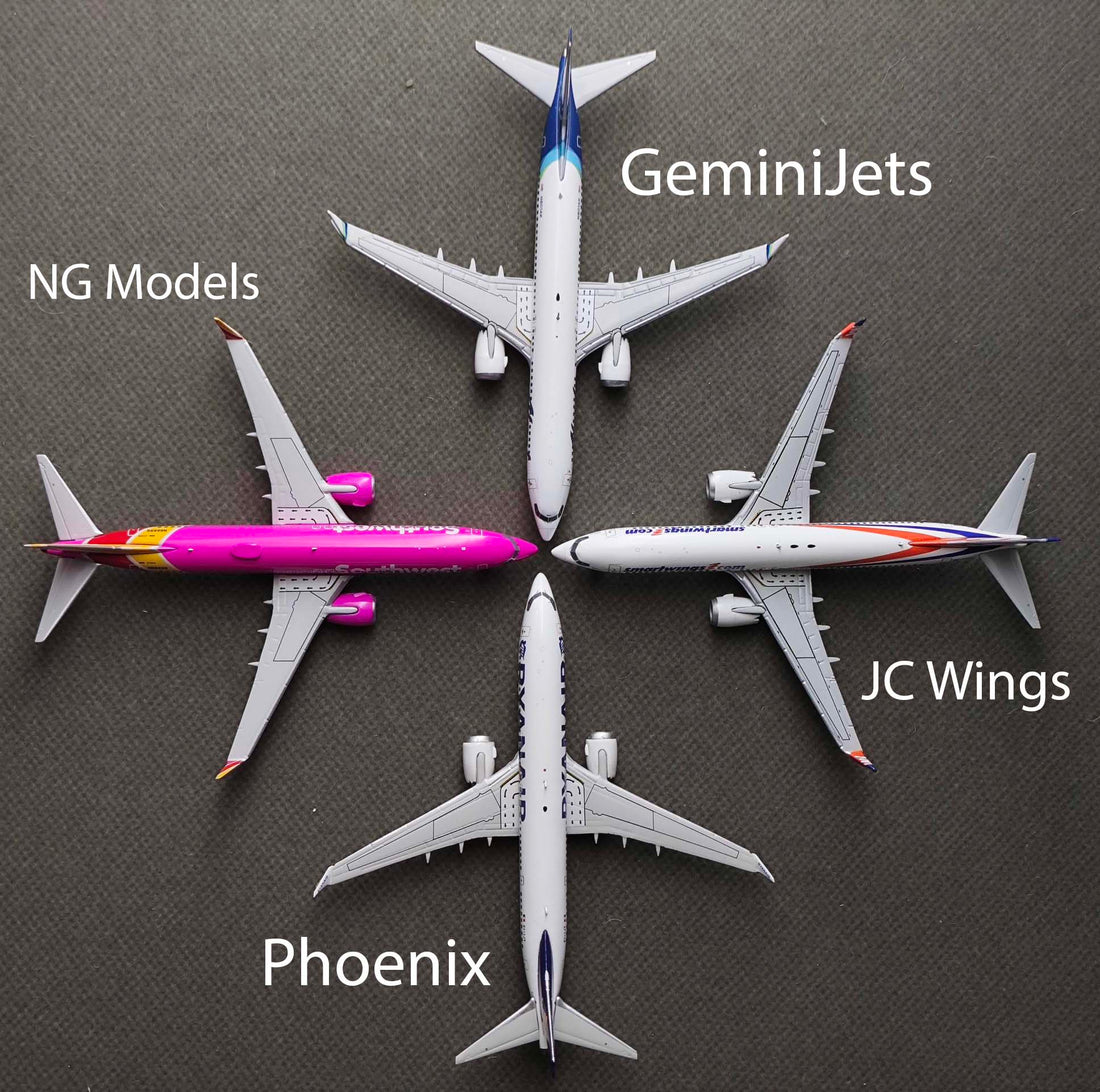

Part 1 — Overall Proportions: Top-Down View and Side Profile

A correctly proportioned 1:400 Boeing 737 MAX 8 has a slender narrow-body fuselage, moderately swept wings, and unusually large-diameter LEAP-1B nacelles positioned forward of the wing leading edge. The 737 MAX's defining visual characteristic — what distinguishes it most immediately from the 737NG — is precisely those oversized engines. Nacelle diameter relative to fuselage width is the single most visible proportion marker at any display distance.

NG Models (NG88015) produces the most balanced nacelle-to-fuselage proportions — well-calibrated nacelles, correct fuselage width, clean nose taper, accurate wing sweep. JC Wings (LH4189) is a close second; nacelles appear slightly larger than NG Models', which some collectors consider more accurate given the MAX's notably large LEAP-1B diameter. Geminijets (GJASA2273) presents comparable proportions to JC Wings — nacelles similarly large, fuselage slenderness good. Phoenix (PH11938) shows the most significant shortfalls: fuselage noticeably wider, nacelles visibly smaller than all three competitors — a direct contradiction of the 737 MAX's most recognizable design feature — blunter nose, thicker tail fin and stabilizers, chunkier pylons.

Side Profile — Parking Attitude

The real Boeing 737 MAX 8 sits in a slight nose-down attitude when parked, a consequence of its landing gear geometry. JC Wings and NG Models reproduce this correctly. Geminijets and Phoenix both sit nose-up — an incorrect stance, with Phoenix the most pronounced.

Part 2 — AT Winglet Proportions: Ruler Measurements and Ratio Analysis

The Boeing 737 MAX 8 uses AT Winglets (Advanced Technology Winglets), co-developed by Aviation Partners Boeing. Unlike the blended winglets on the 737NG — which curve smoothly upward in a single arc — the AT Winglet has a two-piece design: a longer upper fin angling upward and a shorter lower fin angling downward. The upper/lower length ratio is the primary measurable accuracy criterion at 1:400. Reference data from b737.org.uk: upper winglet 8 ft 3 in (251.5 cm) → at 1:400 = 0.629 cm; lower winglet 4 ft 5.8 in (136.7 cm) → at 1:400 = 0.342 cm. True upper/lower ratio: 1.84:1.

Universal caveat: The lower winglet is oversized across all four brands at 1:400 — approximately 75% above true 1:400 scale. True expected lower is 0.342 cm; all four brands measure ~0.60 cm. This is a structural tooling constraint universal at this scale. All brands are assessed relative to each other, not against a physically impossible ideal.

Part 3 — LEAP-1B Engine: Fan Blades and Chevron Nozzles

The CFM LEAP-1B carries 18 composite fan blades. At 1:400, individual blade count is difficult to verify from photographs; blade geometry — thinness, curvature, and leading-edge sharpness — is the practical accuracy proxy. NG Models (NG88015) produces the thinnest, most curved blades, closest to the real composite blade profile. JC Wings (LH4189) and Geminijets (GJASA2273) are close behind with good curvature. Phoenix (PH11938) produces the thickest, flattest blades — the only brand with a noticeably different profile.

Chevron nozzles: all four brands render them. JC Wings (LH4189), NG Models (NG88015), and Geminijets (GJASA2273) all produce sharp, well-defined sawtooth edges — tied for first. Phoenix (PH11938) produces noticeably softer, less defined edges — the only brand where chevron quality is a meaningful shortfall. Chevron presence is not a differentiator between brands; edge quality is.

Part 4 — Main and Nose Landing Gear

Main Landing Gear — HIGH Visibility

JC Wings (LH4189) leads all four brands on main landing gear strut complexity — the single highest-impact detail in this entire review, and the reason JC Wings' overall score (98) exceeds NG Models' (94) despite NG Models winning more individual criteria. Finer structural articulation is clearly visible on the JC Wings strut. Geminijets places second with good strut detail. NG Models and Phoenix both render a simpler form.

Nose / Front Landing Gear — MEDIUM Visibility

NG Models (NG88015) renders a larger structural block at the nose gear's lower axle area than the other three brands — an attempt at more detail that results in an oversized block at an incorrect angle relative to the real aircraft's axle fork. Torque links are also noticeably larger than the other three. JC Wings, Geminijets, and Phoenix all simplify but remain more proportional. This shortfall sits at eye level directly below the cockpit windows, making it more visible in practice than its MEDIUM tier suggests.

Part 5 — Fuselage Underside: Belly Blade Antennas and Radio Altimeter Antennas

The real Boeing 737 MAX 8 has three blade antennas on the fuselage underside and four rectangular radio altimeter antennas. This criterion is one of the most differentiating in the comparison — the gap between brands is absolute rather than a matter of degree, and one brand omits belly blade antennas entirely.

Part 6 — Tail Section: APU Exhaust, Tail Skid, Ventral Strakes

Phoenix (PH11938) is the only 1:400 brand to produce a genuine physical APU exhaust opening on the 737 MAX 8 tail cone. JC Wings (LH4189), NG Models (NG88015), and Geminijets (GJASA2273) all represent it as a printed dot. On tail skid detail, JC Wings and NG Models both render subtle structural detail; Geminijets and Phoenix have a plain bump only. NG Models (NG88015) is the only brand to render ventral strakes — the small fin-like structures on the aft fuselage underside — accurately. The other three brands omit them entirely.

Wing Panel Lines and Scribing Pattern

Two distinct scribing philosophies: NG Models (NG88015) and Phoenix (PH11938) use swept/diagonal slat panel cut lines — geometrically more accurate to the real aircraft — with denser spoiler spacing. JC Wings (LH4189) and Geminijets (GJASA2273) use straight-cut slat lines with wider spoiler spacing and deeper scribing depth. Deeper scribing improves visual definition at display distance and is a valid design trade-off, not a defect.

Part 7 — Scoring Matrix: Visibility-Weighted Totals

Each category scored 1–4 per brand. Visibility-weighted totals apply the tier multiplier: HIGH ×3, MEDIUM ×2, LOW ×1. Maximum possible score: 112.

JC Wings (LH4189) leads NG Models (NG88015) 98 to 94. The gap is explained by JC Wings winning the main landing gear category — the most physically compelling HIGH-tier detail. NG Models' advantages concentrate in LOW-tier categories (ventral strakes, wing scribing accuracy) that reward deliberate close inspection. NG Models' nose gear shortfall at eye level further reinforces the impression that JC Wings presents better on a shelf. For detail-focused collectors, NG Models' hidden structural accuracy closes much of that 4-point gap.

The Four Review Releases — Aircraft Records and Model Details

NG Models · Southwest Airlines "Maryland One" — Boeing 737 MAX 8 N8888Q · 1:400 · NG88015

Southwest Airlines' "Maryland One" livery was unveiled on June 14, 2005, at Baltimore/Washington International Airport — a Boeing 737-700 painted in Maryland's state flag colors (red, yellow, black, and white) to mark Southwest's position as the top carrier at BWI. The Maryland flag's quartered Calvert cross botony pattern makes Maryland One one of the more complex state liveries Southwest has operated. The airline's state-flag program began in 1990 with "Texas One" and had produced approximately 12 state liveries across multiple generations by the mid-2020s. N8888Q brings Maryland One onto a 737 MAX 8 frame — the first MAX generation to carry this livery.

NG88015 demonstrates this mold's accuracy strengths: correct nose-down parking attitude, thinnest LEAP-1B fan blade geometry, correct three belly blade antennas, four rectangular radio altimeter plates, ventral strakes present and accurately rendered (unique among the four brands), and swept/diagonal slat panel lines. The primary shortfall is the nose gear's oversized lower axle block at eye level below the cockpit. NG88015 is the only 1:400 diecast of N8888Q in the Maryland One livery from any manufacturer.

Aircraft record — N8888Q: Boeing 737-8 MAX, Southwest Airlines. The registration N8888Q was assigned specifically to the Maryland One special livery aircraft on the MAX generation. Southwest's entire 737 MAX 8 fleet was grounded worldwide from March 13, 2019 — following the Lion Air Flight 610 (October 2018) and Ethiopian Airlines Flight 302 (March 2019) accidents — through December 2020 when the FAA issued the return-to-service order. N8888Q is a post-grounding delivery. Currently active.

JC Wings · Smartwings Standard Livery — Boeing 737 MAX 8 OK-SWB · 1:400 · LH4189

Smartwings is the largest airline in the Czech Republic, operating as the successor to the Travel Service charter network. The airline rebranded from Travel Service to Smartwings in 2018 with a new white-dominant livery featuring flowing red, orange, and blue stripes. Smartwings had placed 737 MAX 8 orders but was directly impacted by the global MCAS grounding from March 2019 — halting planned deliveries for nearly two years. OK-SWB was Smartwings' first Boeing 737 MAX 8, delivered from Boeing Field (BFI) to Prague Václav Havel Airport (PRG) on March 31, 2022 — MSN 43556, LN 6861.

LH4189 is the highest-scoring release in this review at 98/112. It leads on main landing gear strut articulation — the single most impactful accuracy criterion — and pairs it with correct nose-down parking attitude, sharp LEAP-1B chevron edges, and correct four rectangular radio altimeter plates. The notable shortfall is belly blade antennas: only two present, missing one near the wing station. LH4189 is the only 1:400 diecast of OK-SWB — Smartwings' first 737 MAX 8 — from any manufacturer.

Aircraft record — OK-SWB: Boeing 737-8 MAX, MSN 43556, LN 6861. Delivered BFI–PRG March 31, 2022 — Smartwings' first 737 MAX 8. Currently active in the Smartwings fleet serving charter and scheduled routes across Europe and North Africa from Prague.

Geminijets · Alaska Airlines Standard Livery — Boeing 737 MAX 8 N801AK · 1:400 · GJASA2273

Alaska Airlines' transition to the 737 MAX was delayed by its own fleet strategy. Following Alaska's 2016 acquisition of Virgin America, the airline agreed to retire its inherited Airbus A320 family fleet by 2023 — a process that consumed fleet-planning bandwidth through the early 2020s. N801AK was Alaska Airlines' very first Boeing 737 MAX 8, delivered from Boeing Field (BFI) to Oakland (OAK) on December 27, 2023 — MSN 67802, LN 8803, first flight December 8, 2023. Commercial service began January 23, 2024. The first revenue route specifically enabled by the 737-8's extended range was a seasonal nonstop Anchorage–New York JFK service, launched June 13, 2024 — a 3,386-mile sector beyond the 737-900ER's practical range.

GJASA2273 achieves the closest AT Winglet upper/lower ratio of the four brands (1.50:1 measured). The accuracy gaps elsewhere are significant: zero belly blade antennas, circular dots for radio altimeter antennas (wrong shape), and incorrect nose-up parking attitude. GJASA2273 is the only 1:400 diecast of N801AK — Alaska Airlines' first 737 MAX 8 — from any manufacturer.

Aircraft record — N801AK: Boeing 737-8EH MAX, MSN 67802, LN 8803. First flight December 8, 2023. Delivered to Alaska Airlines December 27, 2023 — the airline's first-ever 737 MAX 8. Commercial service entry January 23, 2024. Configured C12/W30/Y117. Notable: July 24, 2025, struck three deer on landing at Kodiak Airport (ADQ). Currently active.

Phoenix · Ryanair 737 MAX 8-200 EI-IJT · 1:400 · PH11938

Ryanair's commitment to the 737 MAX 8-200 was announced in December 2020 — while the MAX remained grounded worldwide — as the first firm 737 MAX order any airline had placed since the March 2019 groundings. The 737 MAX 8-200 is a Ryanair-specific higher-density variant: two additional overwing exit doors allow a maximum 197-passenger configuration, eight more than the standard -8. EI-IJT is MSN 67097, LN 8937, delivered BFI–DUB June 11–12, 2024, commercial service entry June 13, 2024. By October 4, 2025, Ryanair had accepted its 200th Boeing 737 MAX — the largest MAX operator in Europe.

PH11938 carries the accuracy shortfalls documented throughout this review: widest fuselage, smallest nacelles, incorrect nose-up parking attitude, softest chevron edges, thickest fan blades. Its unambiguous advantage: Phoenix is the only brand to drill a genuine physical APU exhaust opening on the tail cone. It also correctly renders three belly blade antennas, matching NG Models on that criterion. PH11938 is the only 1:400 release representing the 737 MAX 8-200 variant among the four reviewed. PH11938 is the only 1:400 diecast of EI-IJT from any manufacturer.

Aircraft record — EI-IJT: Boeing 737-8-200 MAX, MSN 67097, LN 8937. Delivered BFI–DUB June 11–12, 2024. Commercial service entry June 13, 2024. Ryanair accepted its 200th Boeing 737 MAX on October 4, 2025. Currently active.

Collector Reference — Buyer Guide and Display Strategies

For shelf display accuracy: LH4189 (JC Wings Smartwings) — highest overall score, correct parking attitude, most detailed main gear. Single best purchase if choosing one.

For close-inspection accuracy: NG88015 (NG Models Southwest) — ventral strakes, correct three belly antennas, sharpest fan blades. The Maryland One livery also makes it the most visually distinctive Southwest release in the current 1:400 catalogue.

For airline milestones: GJASA2273 documents Alaska's first MAX 8; PH11938 covers the -200 variant — type-specific detail absent from the other three standard -8 releases.

Minimum meaningful pair: LH4189 + NG88015 — the top two molds side by side, displaying the gap between the best shelf presenter (JC Wings: landing gear and stance) and the best structural detail subject (NG Models: antennas, strakes, fan blades).

Four-brand engineering reference set: LH4189 + NG88015 + GJASA2273 + PH11938 shows the complete accuracy spread across all nine criteria — the set used in this review.

FAQ — 1:400 Boeing 737 MAX 8 Diecast Models

References

1. b737.org.uk — Boeing 737 MAX AT Winglet dimensions: upper fin 8 ft 3 in (251.5 cm), lower fin 4 ft 5.8 in (136.7 cm), upper/lower ratio 1.84:1. http://www.b737.org.uk/maxtech.htm
2. Airfleets.net — EI-IJT (MSN 67097, LN 8937): Boeing 737-8 MAX, delivered Ryanair June 11, 2024. https://www.airfleets.net/ficheapp/plane-b737ng-67097.htm
3. Planespotters.net — EI-IJT Ryanair: ferried BFI–DUB June 11–12, 2024; entered service June 13, 2024. https://www.planespotters.net/airframe/boeing-737-max-8-ei-ijt-ryanair/e5z5qg
4. Airfleets.net — N801AK (MSN 67802, LN 8803): Boeing 737-8 MAX, first flight December 8, 2023. https://www.airfleets.net/ficheapp/plane-b737ng-67802.htm
5. Simple Flying — Alaska Airlines takes delivery of its first Boeing 737 MAX 8 (N801AK), December 28, 2023. https://simpleflying.com/alaska-airlines-takes-delivery-of-its-1st-boeing-737-max-8/
6. Alaska Airlines Newsroom — Alaska Airlines takes delivery of Boeing 737-8 and announces new routes, January 4, 2024. https://news.alaskaair.com/company/alaska-airlines-takes-delivery-of-boeing-737-8/
7. aviation.flights — OK-SWB (MSN 43556, LN 6861): Smartwings Boeing 737-8 MAX, delivered BFI–PRG March 31, 2022. https://aviation.flights/boe/737/43556
8. Maryland State Archives — Southwest Airlines Maryland One livery unveiling at BWI, June 14, 2005. https://msa.maryland.gov/megafile/msa/speccol/sc5300/sc5339/000113/002000/002414/unrestricted/20063975e.pdf
9. BBC News — Boeing 737 Max sees first firm order since crashes (Ryanair order, December 2020). https://www.bbc.com/news/business-55177846
10. Planespotters.net — N801AK Alaska Airlines Boeing 737 MAX 8 airframe record including July 2025 Kodiak incident. https://www.planespotters.net/airframe/boeing-737-max-8-n801ak-alaska-airlines/rm88lk
11. Engine Cowl — Ryanair welcomes its 200th Boeing 737 MAX, October 6, 2025. https://www.enginecowl.com/ryanair-200-737-max/
